モデル: CPCX0069
ブランド: ユザン
認証: ISO9001
| 販売単位 | : | Piece/Pieces |
| パッケージ型式 | : | 箱入り |
| ダウンロード | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Description |

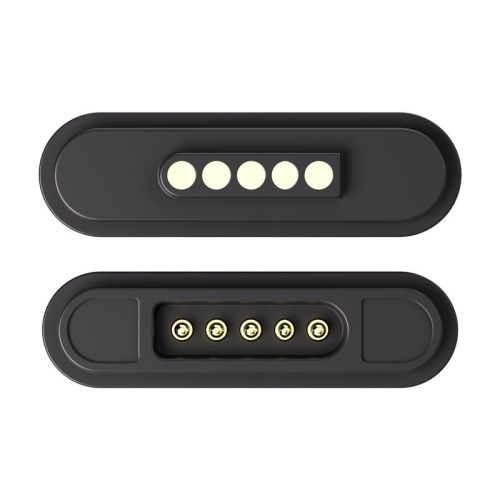

| Product Name | 5P Magnetic Connector – Magnet Not Exposed |
| Type | Magnetic Docking Connector / Magnetic Contact Connector / Magnetic Charging Receptacle |
| Structure | 5-Pin Pogo Pin + Internal Magnetic Alignment |
| Magnet Type | N52 High-Strength Magnet (Internal, Not Exposed) |
| Application | Smart devices, charging docks, compact electronic modules |
| Plating Finish | Gold + Anti-oxidation treatment |
| Material Standard | ROHS & REACH Compliant |
| Durability | High-cycle mating design |
| Rated Voltage | DC 12V |
| Rated Current | 3A Max |
| Contact Resistance | ≤ 50 mΩ (Spring Pin) |
| Function | Power + Signal Transmission |
| Key Dimension | Approx. 27.20 mm (inspection reference size) |
| Housing Material | HTN UL94 V-0 |
| Pin Material | Copper Alloy |
| Plating | Gold Plated Contacts |
| Magnet Structure | Fully embedded, non-exposed design |
| Mating Type | Self-aligning magnetic docking |
